Gowin TKS202N total station

Product Description

Absolute encoding
4 lines double screen display
IP54 dustproof and waterproof desig
variety of applications, such as road
long-time battery, continuous operation for more than 5.5 hours
Suitable for all kinds of surveying and mapping, road, construction, construction and other measurement work

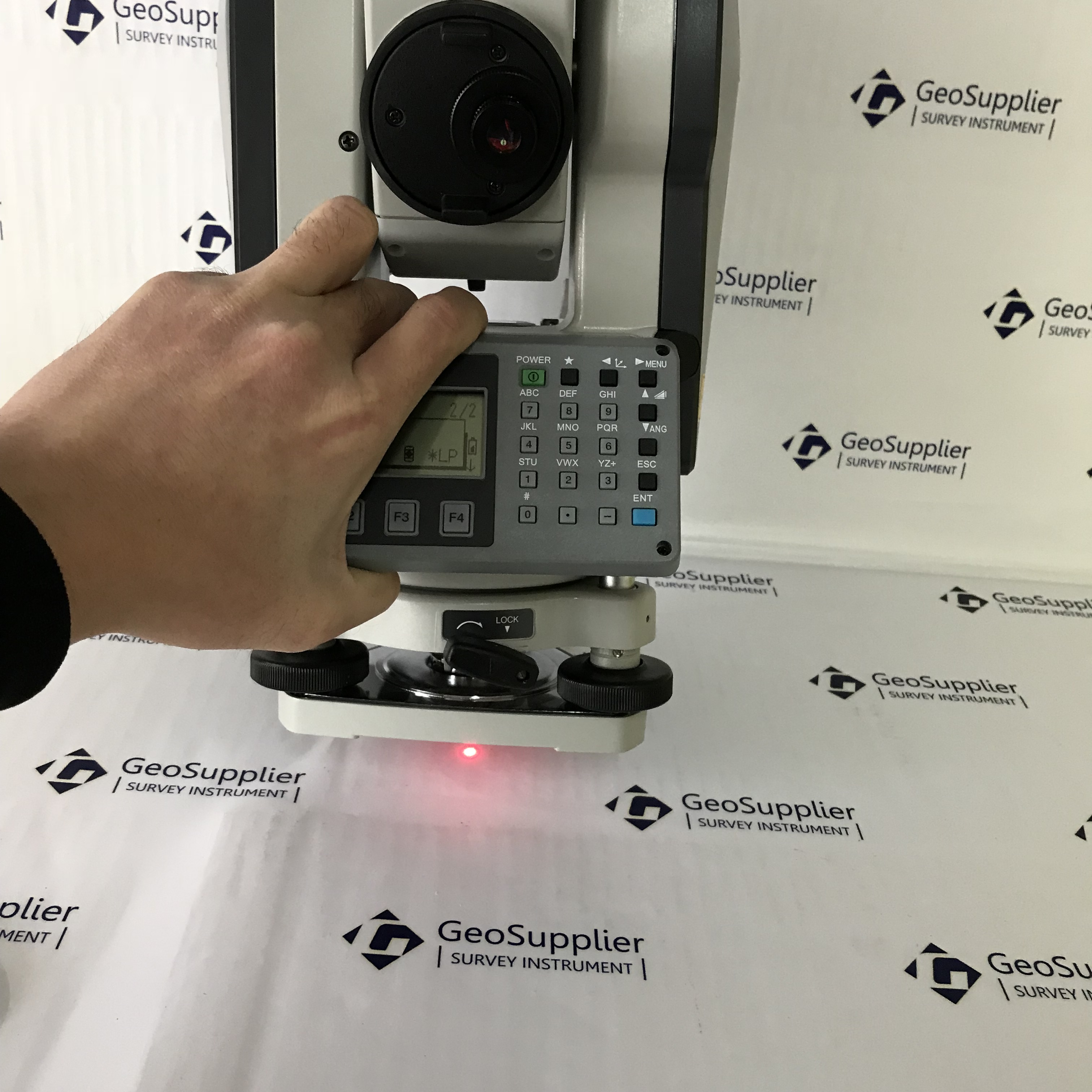

Standard 1mm ultra-fine laser centering device

Telescope
Length	150mm
Objective Lens	Dia.45mm (EDM:50mm)
Magnification	30x
Image	Erect
Field of View	1°30'
Resolving Power	3.0"
Min Focus	1.3m
Angle Measurement
Accuracy	2"
Method	Absolute
Minimum Reading	1"/5"
Distance measurement
1 prism	2000m
3 prism	2700m
Accuracy	(2mm + 2ppm x D) m.s.e.
Measurement time
Fine Mode	1.2sec
Coarse Mode	0.7sec
Tracking Mode	0.4sec
Atmospheric Correction Range	Yes
Prism Constant Correction Range	Yes
Software & Memory
OnBoard Software Functions	3D coordinate measurement
	3D coordinate stake-out
	Data collection
	Remote height
	Offset
	Missing line measurement
	Area calculation
	Resection
	Road design
Internal Memory	50000 points
Interface	RS-232C (Standard)
Display
Display Unit	Graphics LCD, 2 Sides
Keyboard	24 Alpha-Numeric Key
Tilt Correction (Automatic Index)
Tilt Sensor	Yes
Correction Method	Liquid Type
Compensating Range	±3′
Level Senstivity
Plate Level	30"/2mm
Circular Level	10"/2mm
Optical Plummet Telescope
Image	Erect
Magnification	3x
Focusing Range	0.5 to infinity
Field of View	3°
Others
Protection against water and dust	IP54 (with BT-L1 Battery)
Operating Temperature	-20C+50C
Dimension	336(H) x 184(W) x 172(L)mm
Weight (with Battery)	4.8Kg
On Board Battery	BT-L1 (Lithium-ion)
Battery Charger	BC-L1
Maximum Operating Time
Including Distance Measurement	14 Hours
Angle Measurement Only	60 Hours
Output Voltage	DC 10V

Telescope
Length	150mm
Objective Lens	Dia.45mm (EDM:50mm)
Magnification	30x
Image	Erect
Field of View	1°30'
Resolving Power	3.0"
Min Focus	1.3m
Angle Measurement
Accuracy	2"
Method	Absolute
Minimum Reading	1"/5"
Distance measurement
1 prism	2000m
3 prism	2700m
Accuracy	(2mm + 2ppm x D) m.s.e.
Measurement time
Fine Mode	1.2sec
Coarse Mode	0.7sec
Tracking Mode	0.4sec
Atmospheric Correction Range	Yes
Prism Constant Correction Range	Yes
Software & Memory
OnBoard Software Functions	Three-dimensional coordinate measurement
	Three-dimensional coordinate stake-out
	Data collection
	Remote height
	Offset
	Missing line measurement
	Area calculation
	Resection
	Road design
Internal Memory	24,000 points
Interface	RS-232C (Standard)
Display
Display Unit	Graphics LCD, 2 Sides
Keyboard	24 Alpha-Numeric Key
Tilt Correction (Automatic Index)
Tilt Sensor	Yes
Correction Method	Liquid Type
Compensating Range	±3′
Level Senstivity
Plate Level	30"/2mm
Circular Level	10"/2mm
Optical Plummet Telescope
Image	Erect
Magnification	3x
Focusing Range	0.5 to infinity
Field of View	3°
Others
Protection against water and dust	IP54 (with BT-L1 Battery)
Operating Temperature	-20C+50C
Dimension	336(H) x 184(W) x 172(L)mm
Weight (with Battery)	4.8Kg
On Board Battery	BT-L1 (Lithium-ion)
Battery Charger	BC-L1
Maximum Operating Time
Including Distance Measurement	14 Hours
Angle Measurement Only	60 Hours
Output Voltage	DC 10V
