Features:
1. Accurate and Reliable
Angle measurement accuracy: 2 "or 5"
Ranging Accuracy: ± (2mm + 2ppm × D) m.s.e

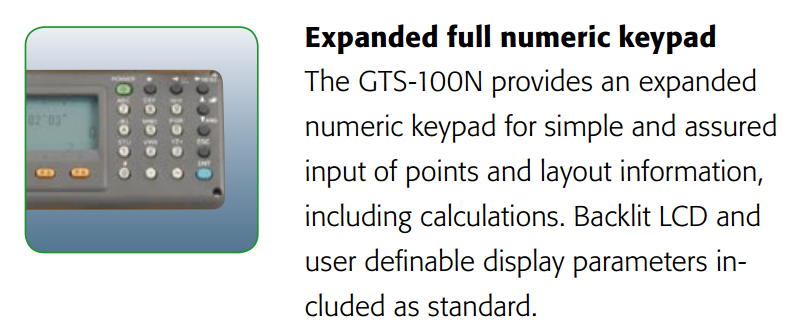

Duplex number / letter keyboard operation more efficient.
2. Long battery
The use of high-capacity, high stability Ni-MH battery, more than ten hours of continuous use.
Random configuration of two, double the length of the work, even in the mountains or no power at too
Still safe to use.
Continuous angle measurement distance: about 10 hours
Continuous angle measurement: about 45 hours
3. Mass Storage
Massive memory design, measurement without worrying about memory margin. Data used in all text
File management, finishing up simple and easy.
Coordinate data: 24000
Observations: 24000
4. Data Transfer
Coordinate data, observational data transmission available computer to upload and download;
Data format compatible Topcon GTS-6, GTS-7 format.
All Chinese kernel can use Chinese name.
5. Laser alignment (optional)
Be optional laser plummet according to customer demand, to facilitate rapid alignment in the dark.
Model
|
GTS-102N
|
Telescope
|
Length
|
150mm
|
Objective Lens Diameter
|
Telescope:45mm, Distance meter: 50mm
|
Magnification
|
30X
|
|
Erect
|
Field of view
|
1°30’
|
Resolving power
|
3”
|
Mini.focus
|
1.3m
|
Distance Measuring
|
Single Prism
|
2000m
|
Three Prism
|
2700m
|
Accuracy - Prism mode
|
(2mm+2ppm x D)m.s.e.
|
Measuring time
|
Fine:1.2s , Coarse:0.7s , Tracking:0.4s
|
Meteorologic correction
|
Auto sensing
|
Prism constant
|
Manual input
|
Angle Measurement
|
Method
|
Absolute Encoding
|
Min. Reading
|
5” / 1”
|
Accuracy
|
2”
|
Diameter of circle
|
71mm
|
Display
|
Type
|
Dot Matrix Graphic LCD (160X64)dot
|
Unit
|
2 sides
|
Keyboard
|
24 Keys
|
Tilt Correction
|
Tilt sensor
|
Single axis
|
Method
|
liquid-electric
|
Range
|
±3'
|
Accuracy
|
1”
|
Level Sensitivity
|
Plate Level
|
30”/2mm
|
Circular Level
|
10’/2mm
|
Optical Plummet (optional:internal laser plummet)
|
|
Erect
|
Magnification
|
3X
|
Focusing range
|
0.5m ~ ∞
|
Field of view
|
5°
|
Data storage & interface
|
Internal memory
|
24,000 points
|
Data interface
|
RS232
|
General
|
Working temperature
|
-20~+50℃
|
Battery type
|
Rechargeable Ni-H battery
|
Battery voltage
|
DC 6V
|
Water & dust proof
|
IP54
|
Working time
|
45 hours
|
